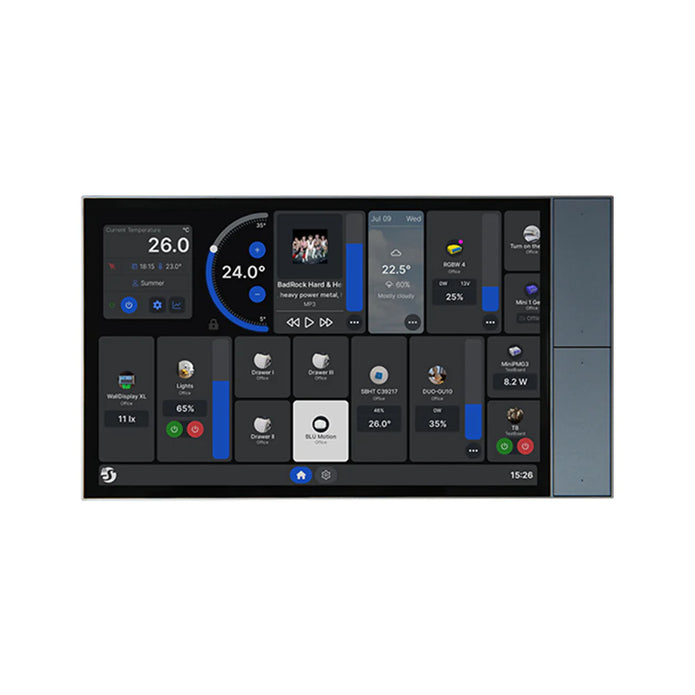

Shelly Wall Display XL - Panel de Control Inteligente

Especificaciones Técnicas:

Pantalla: Táctil capacitiva de alta resolución
Conectividad: WiFi 2.4GHz/5GHz
Alimentación: 100-240V AC
Compatibilidad: Todos los dispositivos Shelly
Montaje: Empotrado en caja estándar
Dimensiones: Formato XL para máxima visibilidad
Physical

Size (HxWxD):

155,8x272,5x38,3 mm / 6.13x10.7x1.50 inch

Weight:

920 g / 32.45 oz

Touch Screen:

5-point capacity screen, G+FF touch

Screen resolution:

1280x752 px

Screw terminals max torque:

0.4 Nm / 3.5 lbin

Conductor cross section:

0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length:

15 mm / 0.24 to 0.59 in

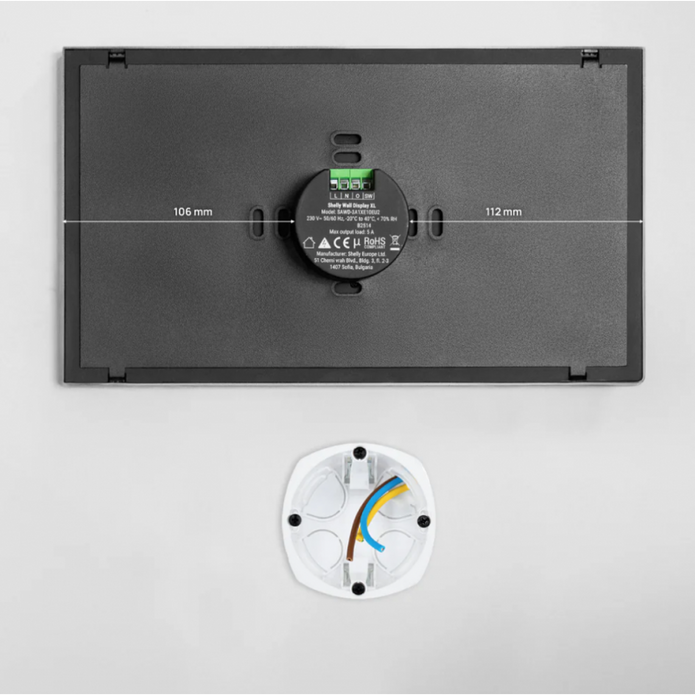

Mounting:

Wall box

Shell material:

Metal stamping, PC with coating, glass

Shell color:

Black with Grey frame

Black with Black frame

Speaker:

2x 2 W (BOX sound cavity)

Environmental

Ambient working temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity:

30 % to 70 % RH

Max. altitude:

2000 m / 6562 ft

Electrical

Power supply:

100 - 240 V~ 50/60Hz

Power consumption:

< 15 W

USB TYPE-C power supply:

5 V⎓ / 3 A

Power Button:

1 button for turning On/Off the screen

Control Buttons:

4 functional buttons for setting

Output circuits ratings

Max. switching voltage:

240 V~

Max. switching current:

5 A

Output (AC)

100 - 240 V~ 50/60Hz

Output (USB TYPE-C)

5 V⎓ / 0.5 A

Sensors, meters

Internal-temperature sensor:

No

Ambient temperature sensor:

No

Humidity sensor:

No

Light sensor:

Yes

Microphone:

Yes (Four-microphone line array)

G-sensor:

No

Proximity sensor:

Yes (≤1 meter)

Radio

Wi-Fi

Protocol:

Wi-Fi 6 Dual Band

RF band:

2.4 & 5 GHz

Max. RF power:

< 20 dBm

Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth

Protocol:

5.4

RF band:

2402 - 2480 MHz

Max. RF power:

< 4 dBm

Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

Microcontroller unit

CPU:

Rockchip RK3566 Quad core Cortex-A55

RAM:

2 GB

Flash:

16 GB

System:

Android 11

Firmware capabilities

Schedules:

20

Webhooks (URL actions):

20 with 5 URLs per hook…

Scripting:

No

MQTT:

Yes
