SHELLY controlador RGBW con medidor de potencia

SHELLY controlador RGBW con medidor de pote...
https://kb.shelly.cloud/knowledge-base/shelly-rgbw-pm
Quantity Value
Physical

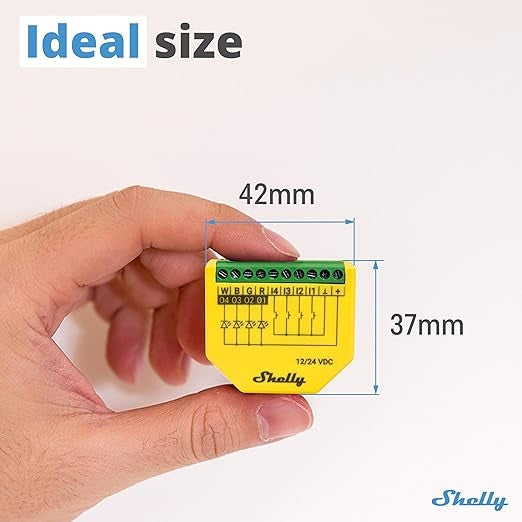

Size (HxWxD) 37x42x16 mm / 1.46x1.65x0.63 inch
Weight 27 g / 0.95 oz
Screw terminals max torque 0.4 Nm / 3.5 lbin
Conductor cross section 0.2 to 2.5 mm² / 24 to 14 AWG
Conductor stripped length 6–7 mm / 0.24–0.28 in
Mounting Wall console
Shell material Plastic
Shell color Red
Terminals color Grey (Mouse Grey)
Environmental
Ambient working temperature -20 °C to 40 °C / -5 °F to 105 °F
Humidity 30 % to 70 % RH
Max. altitude 2000 m / 6562 ft
Electrical
Power supply 110-240 V~ / 24-30 V⎓
Power consumption < 1 W
Neutral not needed No
External protection Cable protection switch EN60898-1 B/C, max. 16 A
Output circuits ratings
Max. switching voltage 240 V~ / 30 V⎓
Max. switching current 16A (240 V~) / 10A (30 V⎓)
Sensors & meters
Voltmeter (AC) Yes
Ammeter (AC) Yes
Internal-temperature sensor Yes
Radio – Wi-Fi
Protocol 802.11 b/g/n/ax
RF band 2412 - 2472 МHz
Max. RF power < 20 dBm
Range Up to 30 m indoors / 50 m outdoors
Bluetooth
Protocol 5.0
RF band 2402 - 2480 MHz
Max. RF power < 4 dBm
Range Up to 10 m indoors / 30 m outdoors
Zigbee
Protocol 802.15.4
Zigbee repeater Yes
RF bands 2400 to 2483.5 MHz
Max. RF power < 20 dBm
Range Up to 100 m indoors / 300 m outdoors
Microcontroller unit
CPU ESP-Shelly-C68F
Flash 8MB
Firmware capabilities
Schedules 20
Webhooks (URL actions) 20 with 5 URLs per hook
Scripting Yes
MQTT Yes
