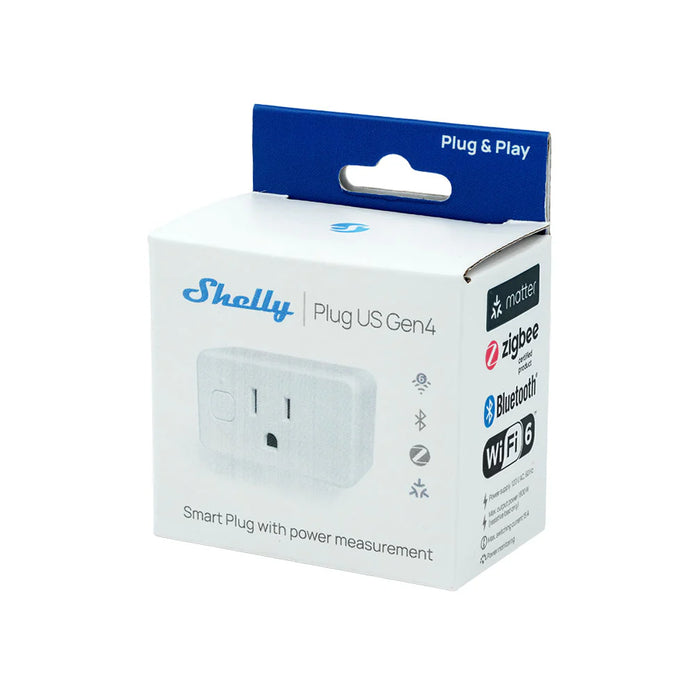

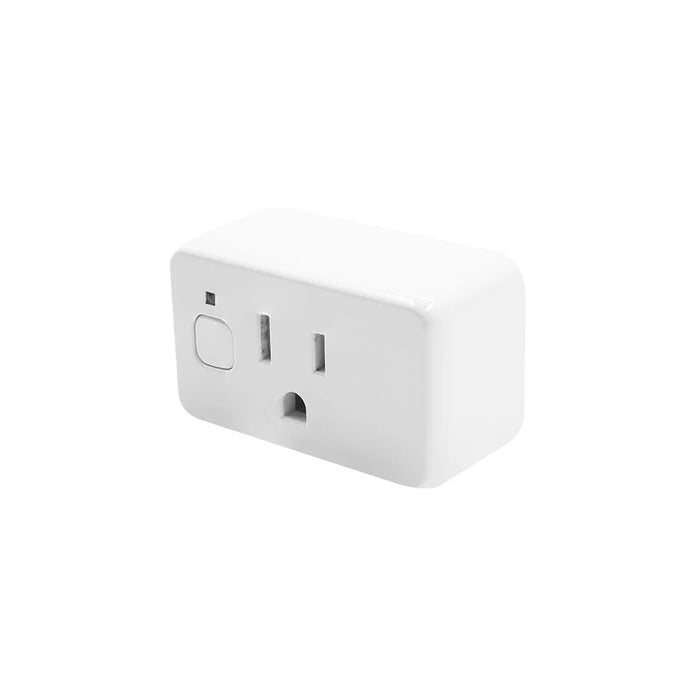

Control Inteligente para contacto Shelly repite Wifi

    Precio de venta $ 437.00 -100% Precio normal
    Precio normal $ 437.00
    Control Inteligente para contacto Shelly repite Wifi
    Precio de venta $ 437.00 Precio normal
    Precio normal $ 437.00

    Tu pago está encriptado y es 100% seguro.

    Visa Mastercard PayPal

    Ficha técnica

    Quantity

    Value

    Physical

    Size (HxWxD):

    38x64x51 mm / 1.50x2.52x2.01 inch

    Weight:

    64 g / 2.25 oz

    Compatible plugs:

    NEMA 5-15 (Type-B)

    Compatible sockets:

    NEMA 1-15 (Type-A) and NEMA 5-15 (Type-B)

    Shell material:

    Plastic

    Shell color:

    White

    Black

    Environmental

    Ambient working temperature:

    -20 °C to 40 °C / -5 °F to 105 °F

    Humidity:

    30 % to 70 % RH

    Max. altitude:

    2000 m / 6562 ft

    Glow-wire temperature:

    750 °C

    Pollution degree:

    2

    Required forced cooling:

    No

    Electrical

    Power supply:

    120 V~ 60 Hz

    Power consumption:

    < 1.5 W

    Rated impulse-withstand voltage:

    1500 V

    Output circuits ratings

    Max. switching voltage:

    120 V~

    Max. switching current:

    15 A

    Max. output power:

    1800 W (resistive load only)

    Number of switching cycles:

    10000

    Overvoltage category:

    II

    Duty-type:

    S1

    Switch type:

    One-way

    Switch configuration:

    SPNO (single-pole, normally-open)

    Type of circuit disconnection:

    Micro

    Sensors, meters

    Voltmeter (AC):

    Yes

    Ammeter (AC):

    Yes

    Power and energy meters:

    Yes

    Internal-temperature sensor:

    Yes

    Light sensor:

    Yes

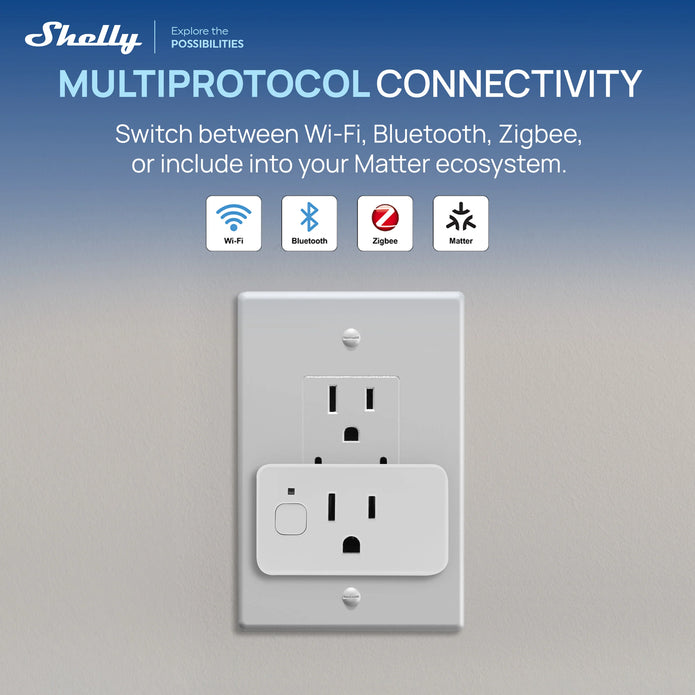

    Radio

    Wi-Fi

    Protocol:

    802.11 b/g/n/ax

    RF band:

    2401 - 2473 МHz

    Max. RF power:

    < 20 dBm

    Range:

    Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
    (Depends on local conditions)

    Bluetooth

    Protocol:

    5 (LE)

    RF band:

    2402 - 2480 MHz

    Max. RF power:

    < 20 dBm

    Range:

    Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
    (Depends on local conditions)

    Zigbee

    Protocol:

    802.15.4

    RF bands:

    2405 to 2480 MHz

    Max. RF power:

    < 20 dBm

    Range:

    Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors
    (Depends on local conditions)

    Microcontroller unit

    CPU:

    ESP-Shelly-C68F

    Flash:

    8 MB

    Firmware capabilities

    Schedules:

    20

    Advanced schedules:

    Yes

    Webhooks (URL actions):

    20 with 5 URLs per hook

    Scripting:

    Yes

    MQTT:

    Yes

    UDP:

    Yes

    Encryption:

    Yes

    KVS (Key-Value Store):

    Yes

    Preguntas Frecuentes

    Simplemente crea una cuenta, agrega productos al carrito y realiza el pago.
    Ofrecemos métodos de pago seguros y opciones de envío nacional.

    Realizamos envíos principalmente dentro de [tu país o región], pero podemos
    gestionar entregas internacionales bajo consulta previa.

    Actualmente nos enfocamos en la venta de productos, pero contamos con una red
    de instaladores certificados que podemos recomendarte según tu zona o tipo de
    proyecto.

    Sí, brindamos asesoramiento técnico especializado para instalaciones con
    productos Insteon y Shelly, además de guías de configuración y soporte postventa.
